Thursday, December 23, 2010

Programmatically manipulate an Image imbedded inside a DocX document

This example uses DocX to write the text “Hello World” into an Image embedded inside a .docx document.

Note: Make sure the document Input.docx exists and that it contains an Image.

Below is an example Input.docx and Output.docx



Code Snippet
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Text.RegularExpressions;
  6. using Novacode;
  7. using System.Drawing;
  8. using System.Threading.Tasks;
  9. using System.IO;
  10. using System.Diagnostics;
  11. using System.Drawing.Imaging;
  12. namespace testDocX
  13. {
  14.     class Program
  15.     {
  16.         static void Main(string[] args)
  17.         {
  18.             // Open the document Input.docx.
  19.             using (DocX document = DocX.Load("Input.docx"))
  20.             {
  21.                 // Make sure this document has at least one Image.
  22.                 if (document.Images.Count() > 0)
  23.                 {
  24.                     Novacode.Image img = document.Images[0];
  25.                     CoolExample(img, "Hello World");
  26.                 }
  27.
  28.                 else
  29.                     Console.WriteLine("The provided document contains no Images.");
  30.
  31.                 // Save this document as Output.docx.
  32.                 document.SaveAs("Output.docx");
  33.             }
  34.         }
  35.
  36.         // Write the given string into this Image.
  37.         private static void CoolExample(Novacode.Image img, string str)
  38.         {
  39.             // Write "Hello World" into this Image.
  40.             Bitmap b = new Bitmap(img.GetStream(FileMode.Open, FileAccess.ReadWrite));
  41.
  42.             /*
  43.              * Get the Graphics object for this Bitmap.
  44.              * The Graphics object provides functions for drawing.
  45.              */
  46.             Graphics g = Graphics.FromImage(b);
  47.
  48.             // Draw the string "Hello World".
  49.             g.DrawString
  50.             (
  51.                 str,
  52.                 new Font("Tahoma", 20),
  53.                 Brushes.Blue,
  54.                 new PointF(0, 0)
  55.             );
  56.
  57.             // Save this Bitmap back into the document using a Create\Write stream.
  58.             b.Save(img.GetStream(FileMode.Create, FileAccess.Write), ImageFormat.Png);
  59.         }
  60.     }
  61. }

Replace text across many documents in Parallel

.NET 4.0 makes Parallel programming easy. Below is an example of how to replace text across many .docx documents in parallel.

This example contains 4 functions.

1) Replace: This function opens a document and does the text replace.

2) NonParallel_ReplaceText: This is how you would replace text across multiple documents without using parallel execution. This is included for comparisons sake.

3) Parallel_ReplaceText: This is how you would replace text across multiple documents in parallel.

4) Main: This function does the work sequentially and then in parallel and prints the time taken for both.

Before running this code replace the line
DirectoryInfo di = new DirectoryInfo(@"C:\Users\Cathal\Desktop\multiple");
with a directory on your machine that contains many .docx documents.

Note(s):

1) There is over head when executing code in Parallel. Make sure your doing enough work to justify Parallel execution. For example: if you run this code on 4 small documents, the function NonParallel_ReplaceText may run faster than its parallel equivalent.

2) Run this example without the debugger, the debugger adds overhead which makes this code run significantly slower.

3) You can download and build the latest version of DocX.dll from here http://docx.codeplex.com/SourceControl/list/changesets#.

Code Snippet
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Text.RegularExpressions;
  6. using Novacode;
  7. using System.Drawing;
  8. using System.Threading.Tasks;
  9. using System.IO;
  10. using System.Diagnostics;
  11. namespace testDocX
  12. {
  13.     class Program
  14.     {
  15.         static void Main(string[] args)
  16.         {
  17.             // Directory containing many .docx documents.
  18.             DirectoryInfo di = new DirectoryInfo(@"C:\Users\Cathal\Desktop\multiple");
  19.
  20.             // Print out the time taken in miliseconds.
  21.             Console.WriteLine("Non-Parallel took " + NonParallel_ReplaceText(di, "pear", "raep") + " miliseconds.");
  22.
  23.             // Print out the time taken in miliseconds.
  24.             Console.WriteLine("Parallel took " + Parallel_ReplaceText(di, "raep", "pear") + " miliseconds.");
  25.
  26.             // Wait until the user presses a key before exiting.
  27.             Console.ReadKey();
  28.         }
  29.
  30.         // Replace text accross multiple documents sequentially.
  31.         private static long NonParallel_ReplaceText(DirectoryInfo di, string a, string b)
  32.         {
  33.             // Create a new Stopwatch, we will use this to time execution.
  34.             Stopwatch sw = new Stopwatch();
  35.
  36.             sw.Start(); // Start the stop watch.
  37.
  38.             // Loop through each document in this specified direction.
  39.             foreach (FileInfo fi in di.GetFiles())
  40.             {
  41.                 // Replace text in this document.
  42.                 Replace(fi.FullName, a, b);
  43.             }
  44.
  45.             sw.Stop(); // Stop the stop watch.
  46.
  47.             // Return the time taken in miliseconds.
  48.             return sw.ElapsedMilliseconds;
  49.         }
  50.
  51.         // Replace text accross multiple documents in Parallel.
  52.         private static long Parallel_ReplaceText(DirectoryInfo di, string a, string b)
  53.         {
  54.             // Create a new Stopwatch, we will use this to time execution.
  55.             Stopwatch sw = new Stopwatch();
  56.
  57.             sw.Start(); // Start the stop watch.
  58.
  59.             // Loop through each document in this specified direction.
  60.             System.Threading.Tasks.Parallel.ForEach
  61.             (
  62.                 di.GetFiles(),
  63.                 currentFile =>
  64.                 {
  65.                     Replace(currentFile.FullName, a, b);
  66.                 }
  67.             );
  68.
  69.             sw.Stop(); // Stop the stop watch.
  70.
  71.             // Return the time taken in miliseconds.
  72.             return sw.ElapsedMilliseconds;
  73.         }
  74.
  75.         // Replace the string a with the string b in filename and save the changes.
  76.         static void Replace(string filename, string a, string b)
  77.         {
  78.             // Load the document.
  79.             using (DocX document = DocX.Load(filename))
  80.             {
  81.                 // Replace text in this document.
  82.                 document.ReplaceText(a, b);
  83.
  84.                 // Save changes made to this document.
  85.                 document.Save();
  86.             } // Release this document from memory.
  87.         }
  88.     }
  89. }

Monday, June 28, 2010

DocX version 1.0.0.10

This version of DocX contains support for Headers and Footers.
There are a few different options to choose from.

1) You can have a default Header and Footer for the entire document.
2) You can have a different Header and Footer for the first page.
3) You can have a different Header and Footer for odd and even pages.

The first code example generates a document with a default Header and Footer that is applied to all pages.

Default Header and Footer
  1. // Create a new document.
  2. using (DocX document = DocX.Create(@"Test.docx"))
  3. {
  4.     // Add Header and Footer support to this document.
  5.     document.AddHeaders();
  6.     document.AddFooters();
  7.
  8.     // Get the default Header for this document.
  9.     Header header_default = document.Headers.odd;
  10.
  11.     // Get the default Footer for this document.
  12.     Footer footer_default = document.Footers.odd;
  13.
  14.     // Insert a Paragraph into the default Header.
  15.     Paragraph p1 = header_default.InsertParagraph();
  16.     p1.Append("Hello Header.").Bold();
  17.
  18.     // Insert a Paragraph into the document.
  19.     Paragraph p2 = document.InsertParagraph();
  20.     p2.AppendLine("Hello Document.").Bold();
  21.
  22.     // Insert a Paragraph into the default Footer.
  23.     Paragraph p3 = footer_default.InsertParagraph();
  24.     p3.Append("Hello Footer.").Bold();
  25.
  26.     // Save all changes to this document.
  27.     document.Save();
  28. }// Release this document from memory.

The code directly above will generate a document that looks like the image below.

Untitled2
The second code example generates a document which has a different Header and Footer for the first page. All other pages use the default Header and Footer.

First Header and Footer
  1. // Create a new document.
  2. using (DocX document = DocX.Create(@"Test.docx"))
  3. {
  4.     // Add Header and Footer support to this document.
  5.     document.AddHeaders();
  6.     document.AddFooters();
  7.
  8.     // Get the first Header for this document.
  9.     Header header_first = document.Headers.first;
  10.
  11.     // Get the first Footer for this document.
  12.     Footer footer_first = document.Footers.first;
  13.
  14.     // Insert a Paragraph into the first Header.
  15.     Paragraph p1 = header_first.InsertParagraph();
  16.     p1.Append("Hello First Header.").Bold();
  17.
  18.     // Insert a Paragraph into the document.
  19.     Paragraph p2 = document.InsertParagraph();
  20.     p2.AppendLine("Hello First page.");
  21.
  22.     // Create a second page to show that only the first has a header and footer.
  23.     p2.InsertPageBreakAfterSelf();
  24.
  25.     // Insert a Paragraph after the page break.
  26.     Paragraph p3 = document.InsertParagraph();
  27.     p3.AppendLine("Hello Second page.");
  28.
  29.     // Insert a Paragraph into the first Footer.
  30.     Paragraph p4 = footer_first.InsertParagraph();
  31.     p4.Append("Hello First Footer.").Bold();
  32.
  33.     // Force the first page to have a different Header and Footer.
  34.     document.DifferentFirstPage = true;
  35.
  36.     // Save all changes to this document.
  37.     document.Save();
  38. }// Release this document from memory.

The code directly above will generate a document that looks like the image below. Notice that the second page has an empty Header and Footer, this will also be the same for all proceeding pages.

Untitled3

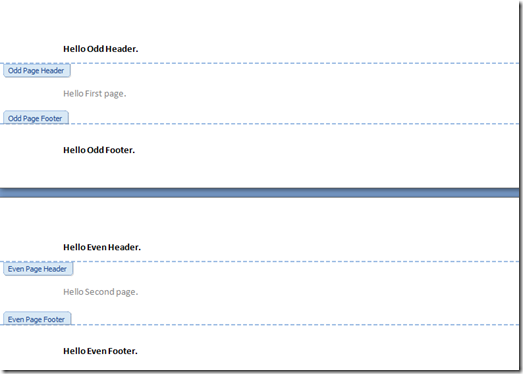

The third code example generates a document which has a different Header and Footer for odd and even pages.

Odd and Even Header and Footer
  1. // Create a new document.
  2. using (DocX document = DocX.Create(@"Test.docx"))
  3. {
  4.     // Add Header and Footer support to this document.
  5.     document.AddHeaders();
  6.     document.AddFooters();
  7.
  8.     // Get the odd and even Headers for this document.
  9.     Header header_odd = document.Headers.odd;
  10.     Header header_even = document.Headers.even;
  11.
  12.     // Get the odd and even Footer for this document.
  13.     Footer footer_odd = document.Footers.odd;
  14.     Footer footer_even = document.Footers.even;
  15.
  16.     // Insert a Paragraph into the odd Header.
  17.     Paragraph p1 = header_odd.InsertParagraph();
  18.     p1.Append("Hello Odd Header.").Bold();
  19.
  20.     // Insert a Paragraph into the even Header.
  21.     Paragraph p2 = header_even.InsertParagraph();
  22.     p2.Append("Hello Even Header.").Bold();
  23.
  24.     // Insert a Paragraph into the document.
  25.     Paragraph p3 = document.InsertParagraph();
  26.     p3.AppendLine("Hello First page.");
  27.
  28.     // Create a second page to show that even and odd pages have different headers and footers.
  29.     p3.InsertPageBreakAfterSelf();
  30.
  31.     // Insert a Paragraph after the page break.
  32.     Paragraph p4 = document.InsertParagraph();
  33.     p4.AppendLine("Hello Second page.");
  34.
  35.     // Insert a Paragraph into the odd Footer.
  36.     Paragraph p5 = footer_odd.InsertParagraph();
  37.     p5.Append("Hello Odd Footer.").Bold();
  38.
  39.     // Insert a Paragraph into the even Footer.
  40.     Paragraph p6 = footer_even.InsertParagraph();
  41.     p6.Append("Hello Even Footer.").Bold();
  42.
  43.     // Force odd & even pages to have different Headers and Footers.
  44.     document.DifferentOddAndEvenPages = true;
  45.
  46.     // Save all changes to this document.
  47.     document.Save();
  48. }// Release this document from memory.

The code directly above will generate a document that looks like the image below. Note that the first page has a different header and footer than the second.

Untitled4

It is of course possible to create a document with a different header and footer for odd, even and the first page. You just need to set the following two properties to true.

// Force the first, odd & even pages to have different Headers and Footers.
document.DifferentOddAndEvenPages = true;
document.DifferentFirstPage = true;

This version of DocX does not support page numbering inside Headers and Footers. This feature will require much more development time due to the shear number of options available for numbering. I hope to add this feature in the near future.

Happy coding,
Cathal

Monday, June 14, 2010

Cathal: Why did you create DocX?

Before I created the OpenSource library “DocX”, there were two methods by which a .docx document could be generated programmatically. This blog post demonstrates each method in turn by generating a simple HelloWorld document.

After experiencing both methods for document creation I hope you will agree that DocX is a interesting alternative. DocX was designed with simplicity in mind. It dose not require the user to have any knowledge of how .docx documents are stored or organised internally.

Method 1: HelloWorld using Office Interop

Make sure that you have added a reference to

1) Microsoft.Office.Interop.Word (version 12.0.0.0)


OfficeInterop HelloWorld
  1. using System;
  2. using Microsoft.Office.Interop.Word;
  3. using System.Reflection;
  4. using System.IO;
  5.
  6. namespace OfficeInterop
  7. {
  8.     class Program
  9.     {
  10.         static void Main(string[] args)
  11.         {
  12.             // Get the path of the executing assembly.
  13.             string path = Path.GetDirectoryName(Assembly.GetExecutingAssembly().Location);
  14.
  15.             // The location to save the file.
  16.             Object oSaveAsFile = (Object)(path + @"\Test.docx");
  17.
  18.             // Object of Missing "Null Value".
  19.             Object oMissing = System.Reflection.Missing.Value;
  20.
  21.             // Object of false.
  22.             Object oFalse = false;
  23.
  24.             // Create object of Word and Document.
  25.             Application oWord = new Application();
  26.             Document oWordDoc = new Document();
  27.
  28.             // Don't display Word.
  29.             oWord.Visible = false;
  30.
  31.             // Add a new document.
  32.             oWordDoc = oWord.Documents.Add(ref oMissing, ref oMissing, ref oMissing, ref oMissing);
  33.
  34.             // Enter some text with the font Arial Black.
  35.             oWord.Selection.Font.Name = "Arial Black";
  36.             oWord.Selection.TypeText("Hello World");
  37.
  38.             // Save the document.
  39.             oWordDoc.SaveAs
  40.             (
  41.                 ref oSaveAsFile, ref oMissing, ref oMissing, ref oMissing,
  42.                 ref oMissing, ref oMissing,ref oMissing, ref oMissing, ref oMissing,
  43.                 ref oMissing, ref oMissing, ref oMissing, ref oMissing, ref oMissing,
  44.                 ref oMissing, ref oMissing
  45.             );
  46.
  47.
  48.             // Close the file.
  49.             oWordDoc.Close(ref oFalse, ref oMissing, ref oMissing);
  50.
  51.             // Quit Word.exe
  52.             oWord.Quit(ref oMissing, ref oMissing, ref oMissing);
  53.         }
  54.     }
  55. }



Method 2: HelloWorld using the OOXML SDK

Make sure that you have added a reference to both

1) DocumentFormat.OpenXml (version 2.0.5022.0)
2) WindowsBase (version 3.0.0.0)


OOXML HelloWorld
  1. using DocumentFormat.OpenXml.Packaging;
  2. using DocumentFormat.OpenXml.Wordprocessing;
  3. using DocumentFormat.OpenXml;
  4.
  5. namespace OOXML
  6. {
  7.     class Program
  8.     {
  9.         static void Main(string[] args)
  10.         {
  11.             // Create a package.
  12.             WordprocessingDocument doc =
  13.             WordprocessingDocument.Create
  14.             (
  15.                 @"Test.docx",
  16.                 WordprocessingDocumentType.Document
  17.             );
  18.
  19.             // Create a main document part and add it to the package.
  20.             MainDocumentPart mainPart = doc.AddMainDocumentPart();
  21.             mainPart.Document = new Document();
  22.
  23.             // Create some content.
  24.             Text textFirstLine = new Text("Hello World");
  25.             Run run = new Run(textFirstLine);
  26.             Paragraph para = new Paragraph(run);
  27.
  28.             // Apply a font.
  29.             RunProperties runProp = new RunProperties();
  30.             RunFonts runFont = new RunFonts();
  31.             runFont.Ascii = "Arial Black";
  32.             runProp.Append(runFont);
  33.             run.PrependChild<RunProperties>(runProp);
  34.             // Add the content into the document.
  35.             Body body = new Body(para);
  36.             mainPart.Document.Append(body);
  37.
  38.             /* Save and close */
  39.             mainPart.Document.Save();
  40.             doc.Close();
  41.         }
  42.     }
  43. }

HelloWorld using DocX

Make sure that you have added a reference to

1) DocX (version 1.0.0.9)
2) System.Drawing (version 2.0.0.0)


DocX HelloWorld
  1. using System;
  2. using Novacode;
  3. using System.Drawing;
  4.
  5. namespace DocXHelloWorld
  6. {
  7.     class Program
  8.     {
  9.         static void Main(string[] args)
  10.         {
  11.             using (DocX document = DocX.Create("Test.docx"))
  12.             {
  13.                 // Add a new Paragraph to the document.
  14.                 Paragraph p = document.InsertParagraph();
  15.
  16.                 // Append some text.
  17.                 p.Append("Hello World").Font(new FontFamily("Arial Black"));
  18.
  19.                 // Save the document.
  20.                 document.Save();
  21.             }
  22.         }
  23.     }
  24. }

Thursday, June 10, 2010

Fluid Paragraph creation with Append

DocX v1.0.0.9 makes Paragraph creation even easier. The original idea of using Append in this manor came from a DocX user Morten Bjerre. Once again Morten I would like to say thank you for your contribution.

The below code creates a document with the following content.

  1. A Picture
  2. A Hyperlink
  3. Different fonts
  4. Different text styles

I hope you will agree that Append() and its variants [AppendLine(), AppendPicture() and AppendHyperlink()] make the creation of Paragraphs flow in a very fluid manor.

The below code creates the following output.

Untitled

Code Snippet
  1. // Create a document.
  2.             using (DocX document = DocX.Create("Test.docx"))
  3.             {
  4.                 // Add a hyperlink into the document.
  5.                 Hyperlink link = document.AddHyperlink("link", new Uri("http://www.google.com"));
  6.
  7.                 // Add a Table into the document.
  8.                 Table table = document.AddTable(2, 2);
  9.                 table.Design = TableDesign.ColorfulGridAccent2;
  10.                 table.Alignment = Alignment.center;
  11.                 table.Rows[0].Cells[0].Paragraphs[0].Append("3");
  12.                 table.Rows[0].Cells[1].Paragraphs[0].Append("1");
  13.                 table.Rows[1].Cells[0].Paragraphs[0].Append("4");
  14.                 table.Rows[1].Cells[1].Paragraphs[0].Append("1");
  15.
  16.                 // Add an image into the document.
  17.                 Novacode.Image image = document.AddImage("Image.jpg");
  18.
  19.                 // Create a picture (A custom view of an Image).
  20.                 Picture picture = image.CreatePicture();
  21.                 picture.Rotation = 10;
  22.                 picture.SetPictureShape(BasicShapes.cube);
  23.
  24.                 // Insert a new Paragraph into the document.
  25.                 Paragraph title = document.InsertParagraph().Append("Test").FontSize(20).Font(new FontFamily("Comic Sans MS"));
  26.                 title.Alignment = Alignment.center;
  27.
  28.                 // Insert a new Paragraph into the document.
  29.                 Paragraph p1 = document.InsertParagraph();
  30.
  31.                 // Append content to the Paragraph
  32.                 p1.AppendLine("This line contains a ").Append("bold").Bold().Append(" word.");
  33.                 p1.AppendLine("Here is a cool ").AppendHyperlink(link).Append(".");
  34.                 p1.AppendLine();
  35.                 p1.AppendLine("Check out this picture ").AppendPicture(picture).Append(" its funky don't you think?");
  36.                 p1.AppendLine();
  37.                 p1.AppendLine("Can you check this Table of figures for me?");
  38.                 p1.AppendLine();
  39.
  40.                 // Insert the Table after Paragraph 1.
  41.                 p1.InsertTableAfterSelf(table);
  42.
  43.                 // Insert a new Paragraph into the document.
  44.                 Paragraph p2 = document.InsertParagraph();
  45.
  46.                 // Append content to the Paragraph.
  47.                 p2.AppendLine("Is it correct?");
  48.
  49.                 // Save this document.
  50.                 document.Save();
  51.             }

If you would like to request a new feature, report a bug or just say hi, send me an email at coffey.cathal@gmail.com

Happy coding,
Cathal

Future

As always, I offer this code to you for free. I am however a student and if you would like to help me pay of some of my student debt , you can make a donation to DocX via paypal.

Wednesday, June 9, 2010

DocX version 1.0.0.9

The summer is finally here and so is DocX version 1.0.0.9. I would like to say sorry once again for the long wait but I simply couldn’t allow DocX to effect my final year college exams.

I received lots of feature requests over the past few months. I intend to implement as many of these features as possible over the next few releases. I have decided to make many small releases instead of one large release.

So what's new in this release?

1) Hyperlinks

DocX now supports hyperlinks.

The Document class now contains AddHyperlink(string, Uri)
The Paragraph class now contains AppendHyperlink(Hyperlink);

Example

Code Snippet
  1. // Create a document.
  2. using (DocX document = DocX.Create(@"Test.docx"))
  3. {
  4.     // Add a hyperlink to this document.
  5.     Hyperlink h = document.AddHyperlink
  6.     ("Google", new Uri("http://www.google.com"));
  7.
  8.     // Add a new Paragraph to this document.
  9.     Paragraph p = document.InsertParagraph();
  10.     p.Append("My favourite search engine is ");
  11.     p.AppendHyperlink(h);
  12.     p.Append(", I think it's great.");
  13.
  14.     // Save all changes made to this document.
  15.     document.Save();
  16. }

Output

clip_image002[4]

2) Content Direction

The Paragraph class now contains a property called Direction which can be either LeftToRight or RightToLeft. This property has both a getter and setter function.

To accommodate Paragraph Direction

  1. The Document class now contains SetDirection(Direction)
  2. The Table class now contains SetDirection(Direction)
  3. The Row class now contains SetDirection(Direction)
  4. The Cell class now contains SetDirection(Direction)

Where Direction is an enum with the choices LeftToRight and RightToLeft.

Example

Code Snippet
  1. // Create a new document.
  2. using (DocX document = DocX.Create("Test.docx"))
  3. {
  4.     // Create a new Paragraph with the text "Hello World".
  5.     Paragraph p = document.InsertParagraph("Hello World.");
  6.
  7.     // Make this Paragraph flow right to left. Default is left to right.
  8.     p.Direction = Direction.RightToLeft;
  9.
  10.     // Save all changes made to this document.
  11.     document.Save();
  12. }

Output

clip_image002[6]

3) Indentation

The Paragraph class now contains four properties for setting Indentation.

  1. IndentationFirstLine(float) which indents only the first line of a paragraph.
  2. IndentationHanging(float) which indents all but the first line of a paragraph.
  3. IndentationBefore(float) which indents before content.
  4. IndentationAfter(float) which indents after content.

Example

Code Snippet
  1. // Create a new document.
  2. using (DocX document = DocX.Create("Test.docx"))
  3. {
  4.     // Create a new Paragraph.
  5.     Paragraph p = document.InsertParagraph("Line 1\nLine 2\nLine 3");
  6.
  7.     // Indent only the first line of the Paragraph.
  8.     p.IndentationFirstLine = 1.0f;
  9.
  10.     // Save all changes made to this document.
  11.     document.Save();
  12. }

Output

clip_image002[8]

4) Pictures

The Image class now contains a CreatePicture() function and the Paragraph class contains a AppendPicture(Picture) function. The below example should explain how these updates enable easier Paragraph building.

Example

Code Snippet
  1. using (DocX document = DocX.Create("Test.docx"))
  2. {
  3.     // Add an image to the document.
  4.     Image i = document.AddImage(@"Image.jpg");
  5.
  6.     // Create a picture i.e. (A custom view of an image)
  7.     Picture p = i.CreatePicture();
  8.     p.FlipHorizontal = true;
  9.     p.Rotation = 10;
  10.
  11.     // Create a new Paragraph.
  12.     Paragraph par = document.InsertParagraph();
  13.
  14.     // Append content to the Paragraph.
  15.     par.Append("Here is a cool picture")
  16.        .AppendPicture(p)
  17.        .Append(" don't you think so?");
  18.
  19.     // Save all changes made to this document.
  20.     document.Save();
  21. }

Output

clip_image002[10]

Future

As always, I offer this code to you for free. I am however a student and if you would like to help me pay of some of my student debt , you can make a donation to DocX via paypal.

Friday, May 28, 2010

DocX and Tables

Create and inserting Tables into documents is easy with DocX.

Simple Table
  1. // Create a document.
  2. using (DocX document = DocX.Create(@"Test.docx"))
  3. {
  4. // Add a Table to this document.
  5. Table t = document.AddTable(2, 3);
  6. // Specify some properties for this Table.
  7. t.Alignment = Alignment.center;
  8. t.Design = TableDesign.MediumGrid1Accent2;
  9. // Add content to this Table.
  10. t.Rows[0].Cells[0].Paragraphs.First().Append("A");
  11. t.Rows[0].Cells[1].Paragraphs.First().Append("B");
  12. t.Rows[0].Cells[2].Paragraphs.First().Append("C");
  13. t.Rows[1].Cells[0].Paragraphs.First().Append("D");
  14. t.Rows[1].Cells[1].Paragraphs.First().Append("E");
  15. t.Rows[1].Cells[2].Paragraphs.First().Append("F");
  16. // Insert the Table into the document.
  17. document.InsertTable(t);
  18. document.Save();
  19. }// Release this document from memory.

The above code will creates a document that looks like the below image.

Untitled

Paragraphs inside Table Cells can of course contain content such as Images, Hyperlinks and custom text styles as in the below example.

Advance Table
  1. // Create a document.
  2. using (DocX document = DocX.Create(@"Test.docx"))
  3. {
  4. // Add a Table to this document.
  5. Table table = document.AddTable(2, 3);
  6. // Add a Hyperlink into this document.
  7. Hyperlink h = document.AddHyperlink("Google", new Uri("http://www.google.com"));
  8. // Add an Image into this document.
  9. Novacode.Image i = document.AddImage(@"Logo.png");
  10. // Create a Picture (Custom View) of this Image.
  11. Picture p = i.CreatePicture();
  12. p.Rotation = 10;
  13. // Specify some properties for this Table.
  14. table.Alignment = Alignment.center;
  15. table.Design = TableDesign.LightShadingAccent2;
  16. // Insert the Table into the document.
  17. Table t1 = document.InsertTable(table);
  18. // Add content to this Table.
  19. t1.Rows[0].Cells[0].Paragraphs.First().AppendHyperlink(h).Append(" is my favourite search engine.");
  20. t1.Rows[0].Cells[1].Paragraphs.First().Append("This text is bold.").Bold();
  21. t1.Rows[0].Cells[2].Paragraphs.First().Append("Underlined").UnderlineStyle(UnderlineStyle.singleLine);
  22. t1.Rows[1].Cells[0].Paragraphs.First().Append("Green").Color(Color.Green);
  23. t1.Rows[1].Cells[1].Paragraphs.First().Append("Right to Left").Direction = Direction.RightToLeft;
  24. t1.Rows[1].Cells[2].Paragraphs.First().AppendPicture(p);
  25. document.Save();
  26. }// Release this document from memory.

The above code will creates a document that looks like the below image.

Untitled2

Happy coding,
Cathal
