Thursday, December 23, 2010

Programmatically manipulate an Image imbedded inside a DocX document

This example uses DocX to write the text “Hello World” into an Image embedded inside a .docx document.

Note: Make sure the document Input.docx exists and that it contains an Image.

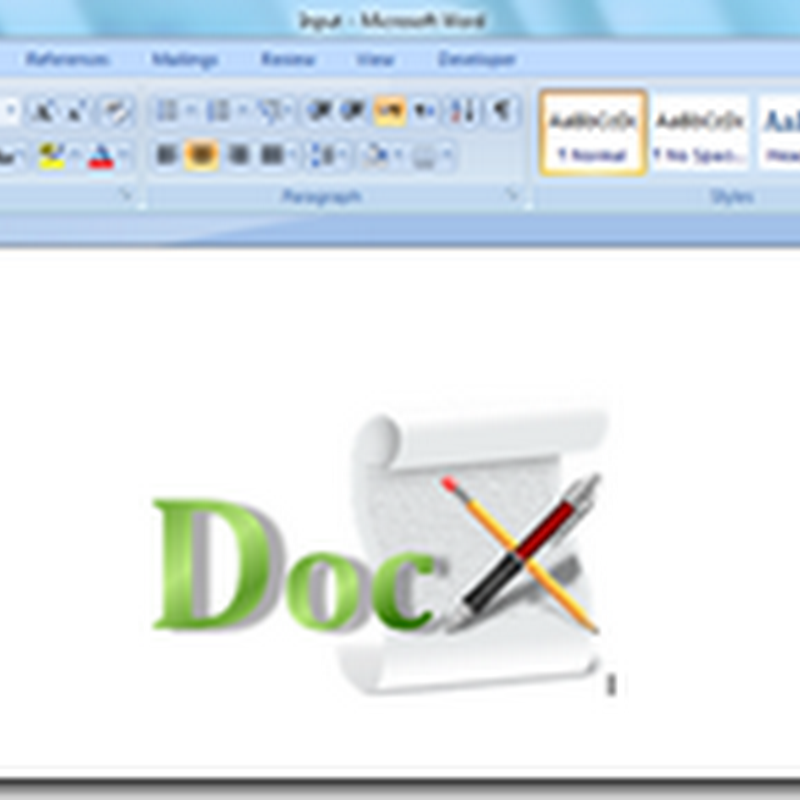

Below is an example Input.docx and Output.docx



Code Snippet
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Text;
  5. using System.Text.RegularExpressions;
  6. using Novacode;
  7. using System.Drawing;
  8. using System.Threading.Tasks;
  9. using System.IO;
  10. using System.Diagnostics;
  11. using System.Drawing.Imaging;
  12. namespace testDocX
  13. {
  14.     class Program
  15.     {
  16.         static void Main(string[] args)
  17.         {
  18.             // Open the document Input.docx.
  19.             using (DocX document = DocX.Load("Input.docx"))
  20.             {
  21.                 // Make sure this document has at least one Image.
  22.                 if (document.Images.Count() > 0)
  23.                 {
  24.                     Novacode.Image img = document.Images[0];
  25.                     CoolExample(img, "Hello World");
  26.                 }
  28.                 else
  29.                     Console.WriteLine("The provided document contains no Images.");
  31.                 // Save this document as Output.docx.
  32.                 document.SaveAs("Output.docx");
  33.             }
  34.         }
  36.         // Write the given string into this Image.
  37.         private static void CoolExample(Novacode.Image img, string str)
  38.         {
  39.             // Write "Hello World" into this Image.
  40.             Bitmap b = new Bitmap(img.GetStream(FileMode.Open, FileAccess.ReadWrite));
  42.             /*
  43.              * Get the Graphics object for this Bitmap.
  44.              * The Graphics object provides functions for drawing.
  45.              */
  46.             Graphics g = Graphics.FromImage(b);
  48.             // Draw the string "Hello World".
  49.             g.DrawString
  50.             (
  51.                 str,
  52.                 new Font("Tahoma", 20),
  53.                 Brushes.Blue,
  54.                 new PointF(0, 0)
  55.             );
  57.             // Save this Bitmap back into the document using a Create\Write stream.
  58.             b.Save(img.GetStream(FileMode.Create, FileAccess.Write), ImageFormat.Png);
  59.         }
  60.     }
  61. }
